Infrared Heaters

Schultze infrared heaters operate highly efficient owing to their halogen lamps. Their short wave radiant energy does not heat the air but is converted into warmth when absorbed by a solid body, similar to the warmth of the sun.

Typical applications
are areas of transport and loading, irregularly used workshops, social or sports facilities, outdoor smoking areas, pub gardens and pavement cafes. Also used to heat machines. This product is distinguished by a good finish to the fullest detail and a well thought-out concept regarding safety. The heaters comply with all regulations for electrical safety in accordance with EN 60335-1 and EN 60335-2-30. A protection grid ensures that the inner part of the appliance cannot be touched accidentally.
Please order our data sheet for more information.

HA – Infrared Heaters
These heaters supply workplaces with warmth in areas that cannot be economically heated by normal convector heaters, such as large workshops or areas of transport where goods are delivered. The heaters are also used to warm up or harden materials, e.g. in paint shops. For damp places we recommend the HWP heaters.

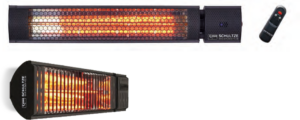

HWP2 – Infrared Heaters
These weatherproof heaters (protection type IP55) are ideally suited to outdoor areas. They deliver their full output instantly when energized and additionally provide a pleasant lighting.

Connection to 230 V~ ( with power > 3000 W re-wiring to 400 V 3 N ~possible )
Order No. Power
W
Protection Color Height mm Width mm Depth mm Weight kg
HA-1500 N 1500 IP22 ivory 275 430 140 3,8
HA-2000 N 2000 IP22 ivory 275 430 140 3,8
HA-3000 N 3000 IP22 ivory 430 430 140 5,5
HA-4500 N 4500 IP22 ivory 590 430 140 6,5
HA-6000 N 6000 IP22 ivory 590 430 140 6,5
HWP2-W 1500 IP55 white 120 480 120 1,7
HWP2-B 1500 IP55 blsck 120 480 120 1,7
HWP2-S 1500 IP55 silver 120 480 120 1,7
HWP2-2B 2000 IP55 black 120 480 120 1,7
HWP2-3B 3000 IP55 black 120 960 120 3,2
HWP2-3W 3000 IP55 white 120 960 120 3,2
HWP2-45B 4500 IP55 black 120 1440 120 6,4

Suitable accessories: Dimmer,movement sensors

InduStrip EZ2

InduStrip EZ2 radiant heaters are suitable for full or auxiliary heating of rooms with large volumes and high ceilings. These radiators are for commercial use like in department stores, warehouses or industrial buildings. The heating elements emit no light and thanks to the clear design, the EZ2 inconspicuously integrates into the electrical installation.

Recommended mounting height up to 3.5m.

Radiant ceiling heater 230 V ~ IP44 Casing white RAL9016
Power Length
mm
Height
mm
Width
mm
Weight
br. kg
Order-No.
1200 W 923 64 282 6,8 IR EZ2-1200
1700 W 1221 64 282 8,8 IR EZ2-1700
Different models on request

InduStrip IHS

InduStrip IHS radiant heaters are suitable for full or auxiliary heating of rooms with large volumes and high ceilings. These radiators can also be used outdoors like on sports stands or loading ramps to keep them dry and frost-free. Robust industrial design, galvanized steel casing, high-gloss aluminum reflectors.

Recommended mounting height up to 5.5m.

Industrial infrared heater 400 V 3N ~ IP44 Casing alu-zinc coated
Power Length
mm
Height
mm
Width
mm
Weight
br. kg
Order-No. Order-No.
protection grille
3000 W 1125 83 358 9,0 IR IHS3000 IHSG3000
4500 W 1500 83 358 11,1 IR IHS4500 IHSG4500
6000 W 1875 83 358 13,2 IR IHS6000 IHSG6000
Protection grille is available as an accessory
